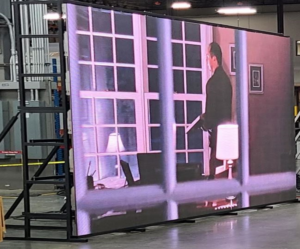

SKYWORTH P6.25 DISPLAY: LED, 10′ x 16′, floor stand (Used)

Contact Josh S at joshs@schneiderind.com for more information.

Details/Specifications:

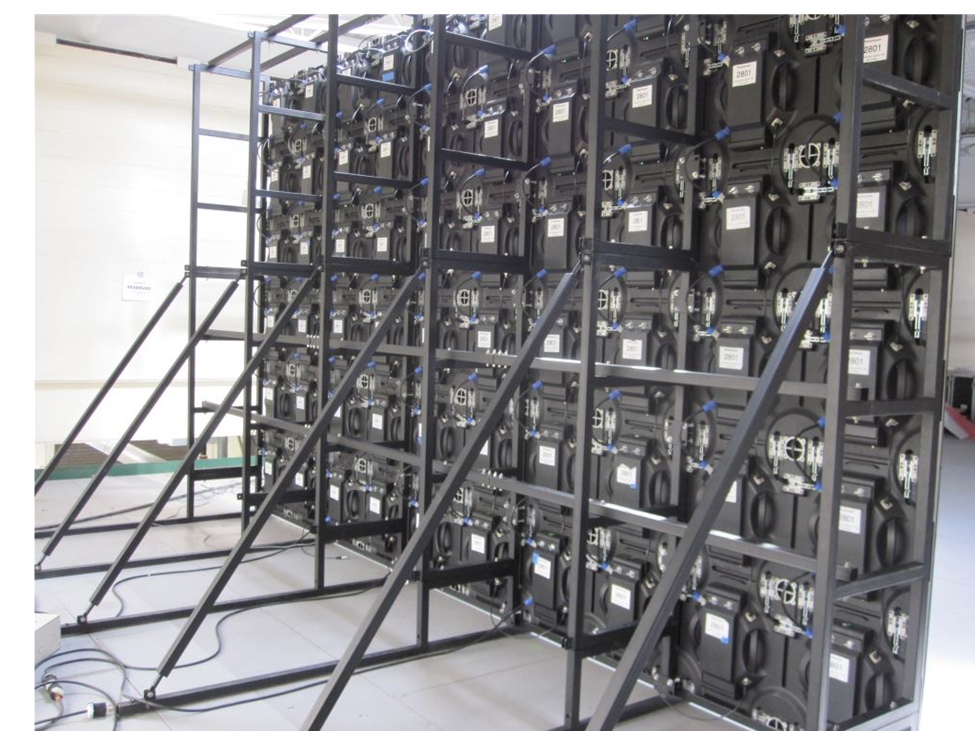

Rental style with floor stand

60 panels

3 meters by 5 meters

All connecting cables and hardware

Video processor

(GZP096-106C19PS6-IP44 Geist Power Distribution Unit and CCI Royal Cable)

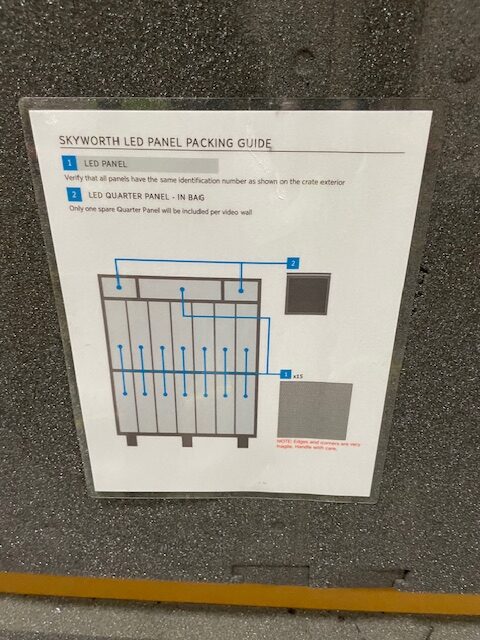

Custom made wooden flight cases (3 per wall)

SPECS
  Size: Each wall is 5m x 3m (10ft x 16ft per wall)
  Quantity: 44 sets of walls total (60 panels per video wall)
  Pitch: 6.25mm, Resolution: 800 x 480
 AVG Power Consumption – 320 W/sqm; MAX Power Consumption – 640
W/sqm
  Casing: Custom Flight Cases; 1 each Frame Crate; 2 each Panel Crate /
Video Wall
 Frame Case: 82”L x 36”W x 26”H; Panel Case: 49”L x 45”W x 62”H.
 The frame cases stack up to 3 high but do not stack the panel cases at all.
 Considering 1 video wall is 2 panel cases and 1 frame case, approximately
12-14 video walls in a standard 53-foot trailer.
 The video walls were all manufactured at the same time but they are NOT
all color matched. The video walls are comprised of 4 different batches of
LEDs.
*On the batch spreadsheet all batch 1 + 2’s match, all batch 4’s match, all
batch A’s match and all batch B’s match

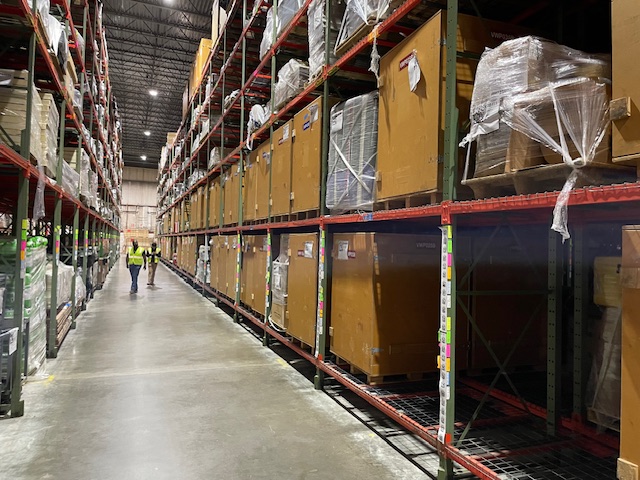

  132 pallets for all 44 sets of walls
   P6.25 SKYWORTH DISPLAY: LED, SMD Rental Style with Floor Stand, all
connecting cables and hardware, video processor, custom-made wooden
flight cases (3 crates per wall, 180 crates total)
  G1043 — GZP096-106C19PS6-IP44 GEIST POWER DISTRIBUTION UNIT:
non-surge 48A 23V, 11.0KW, w/ Cooper
  AHMC260L-1 disconnect and Hubbell Connectors
  CCI Royal CABLE: SOOW-6-3-Blk-Cut Reel, 90 Degree C 600V, with Hubbell
connector
 Video walls use an RGBlink controller
  Purchased: 2014 (original owner)
