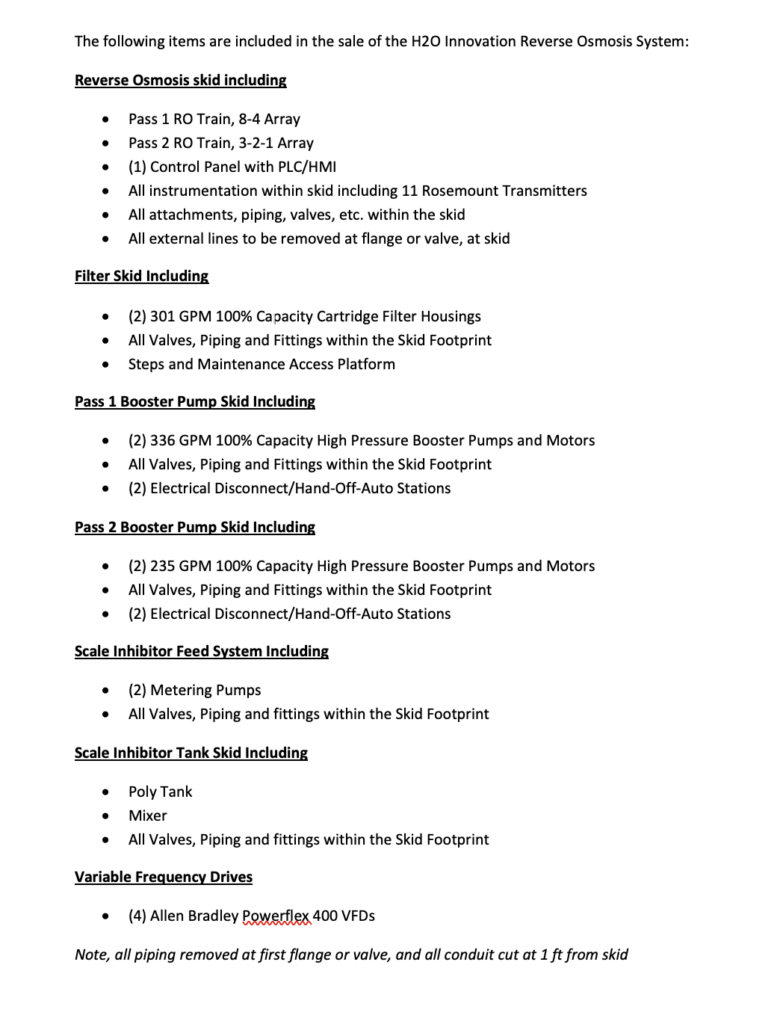

Available Now – H2O Innovation Reverse Osmosis System

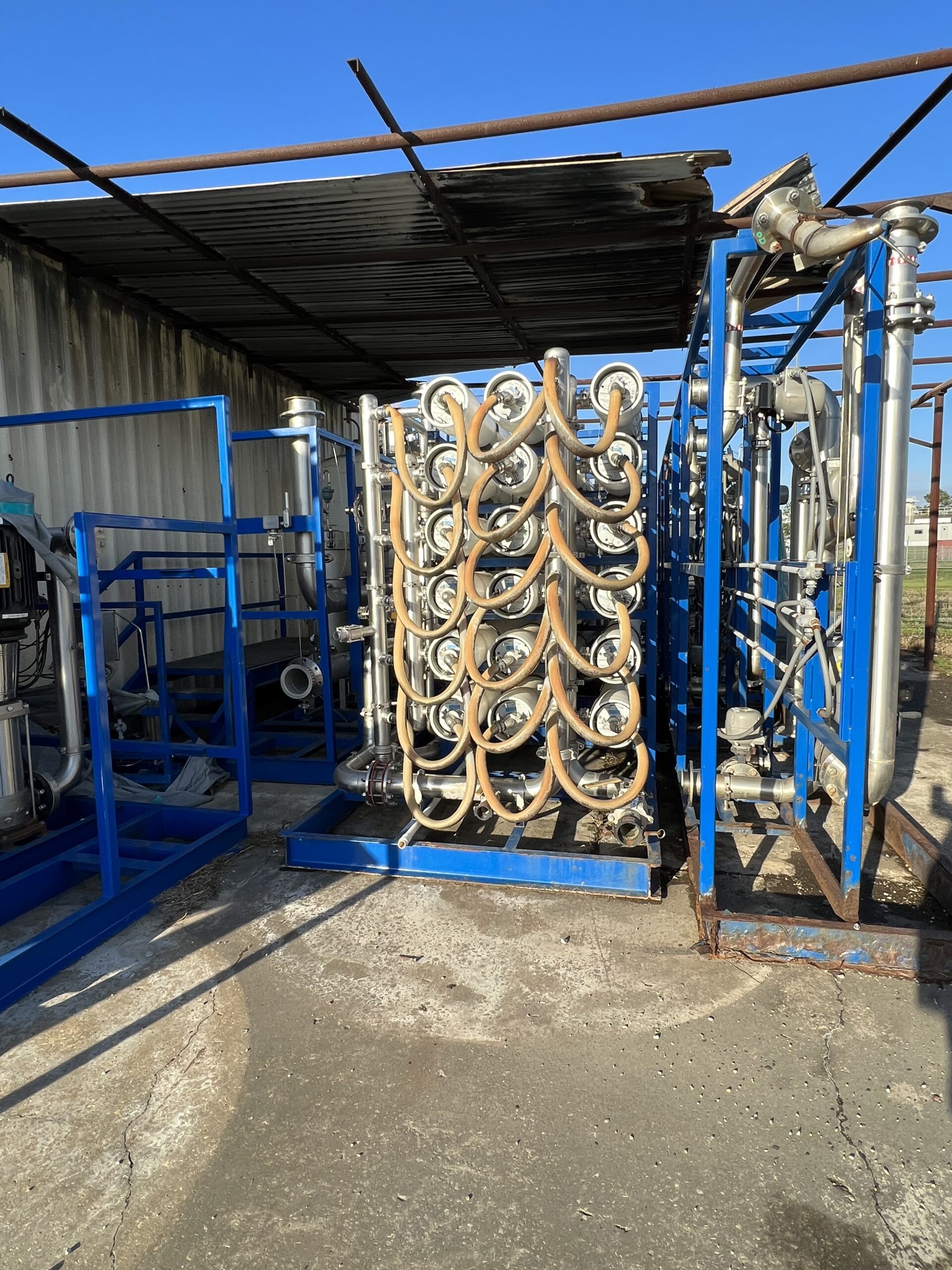

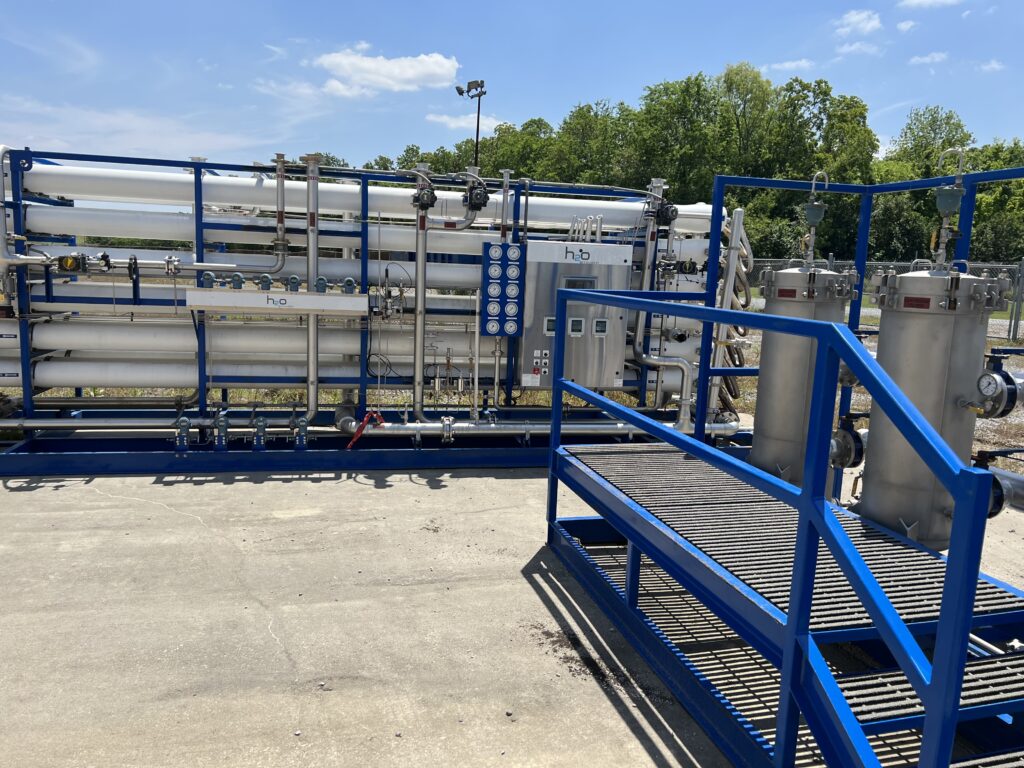

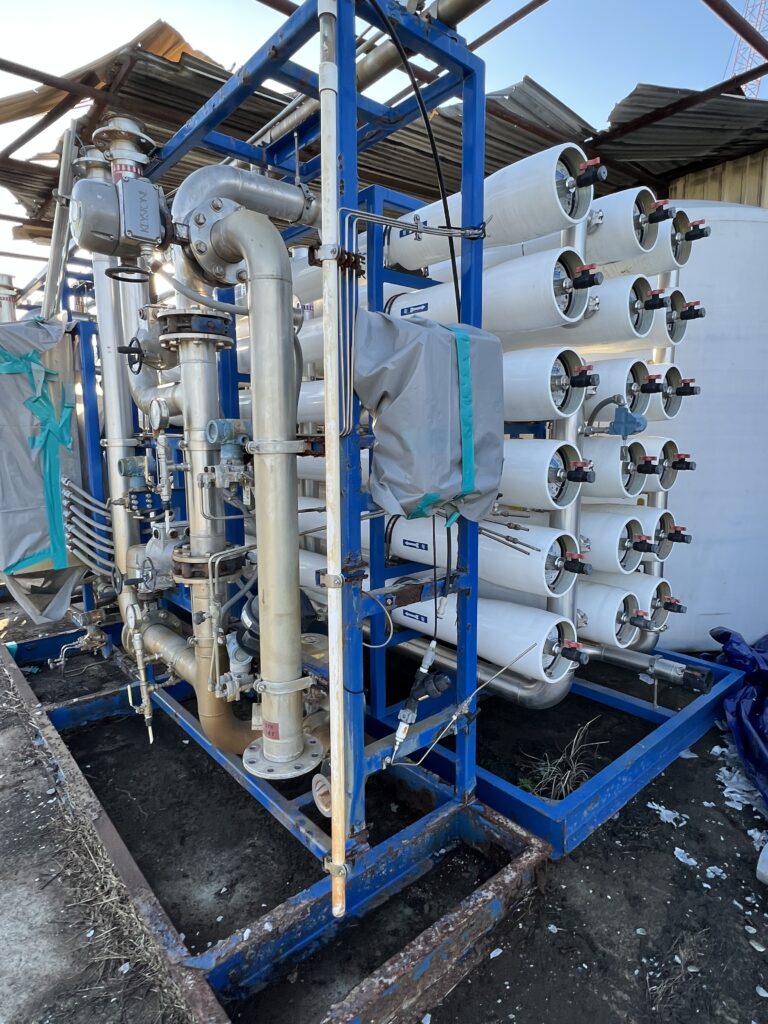

Reverse Osmosis skid including

• Pass 1 RO Train, 8-4 Array
• Pass 2 RO Train, 3-2-1 Array

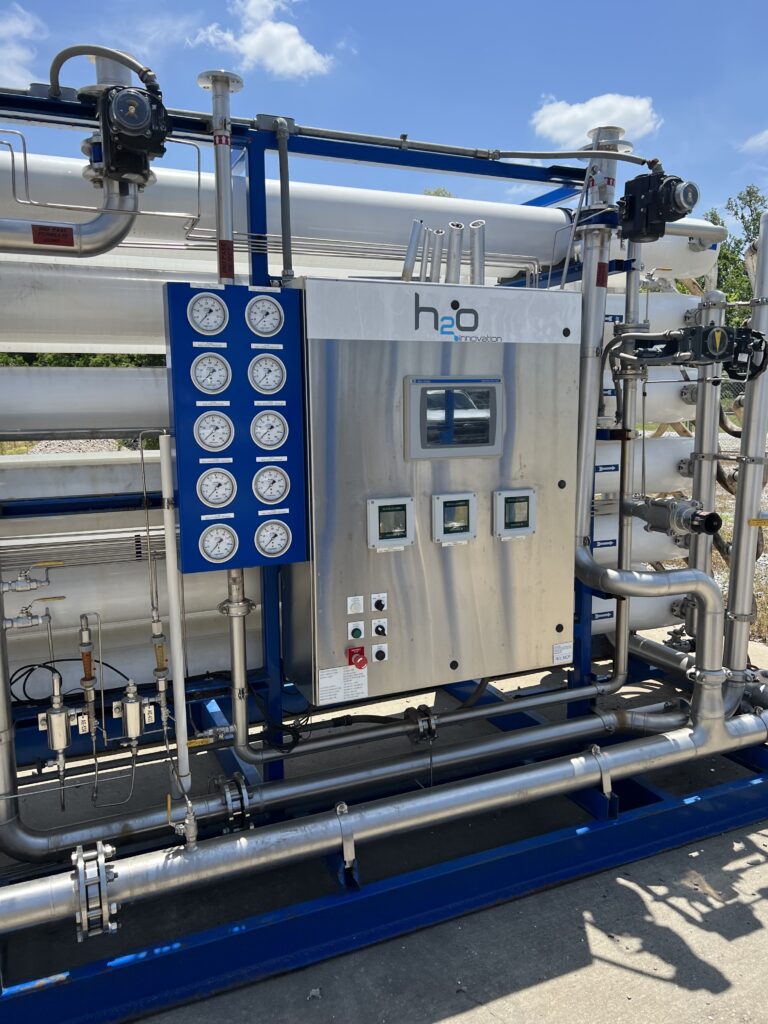

• (1) Control Panel with PLC/HMI
• All instrumentation within skid including 11 Rosemount Transmitters
• All attachments, piping, valves, etc. within the skid
• All external lines to be removed at flange or valve, at skid

Filter Skid Including

• (2) 301 GPM 100% Capacity Cartridge Filter Housings
• All Valves, Piping and Fittings within the Skid Footprint
• Steps and Maintenance Access Platform

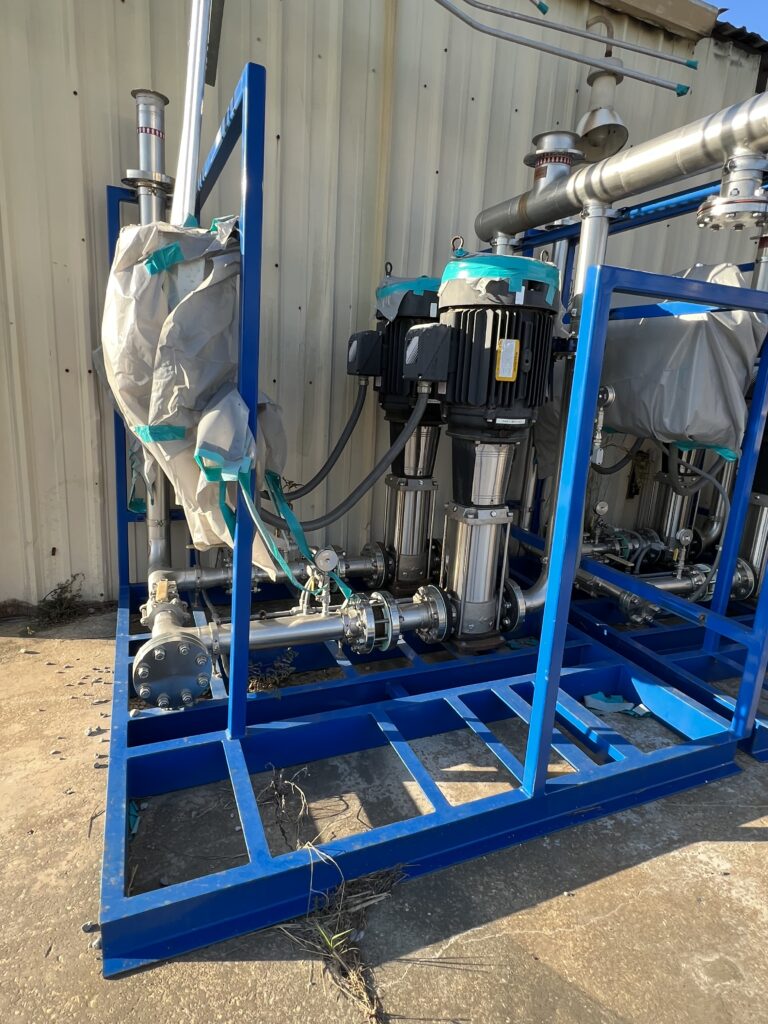

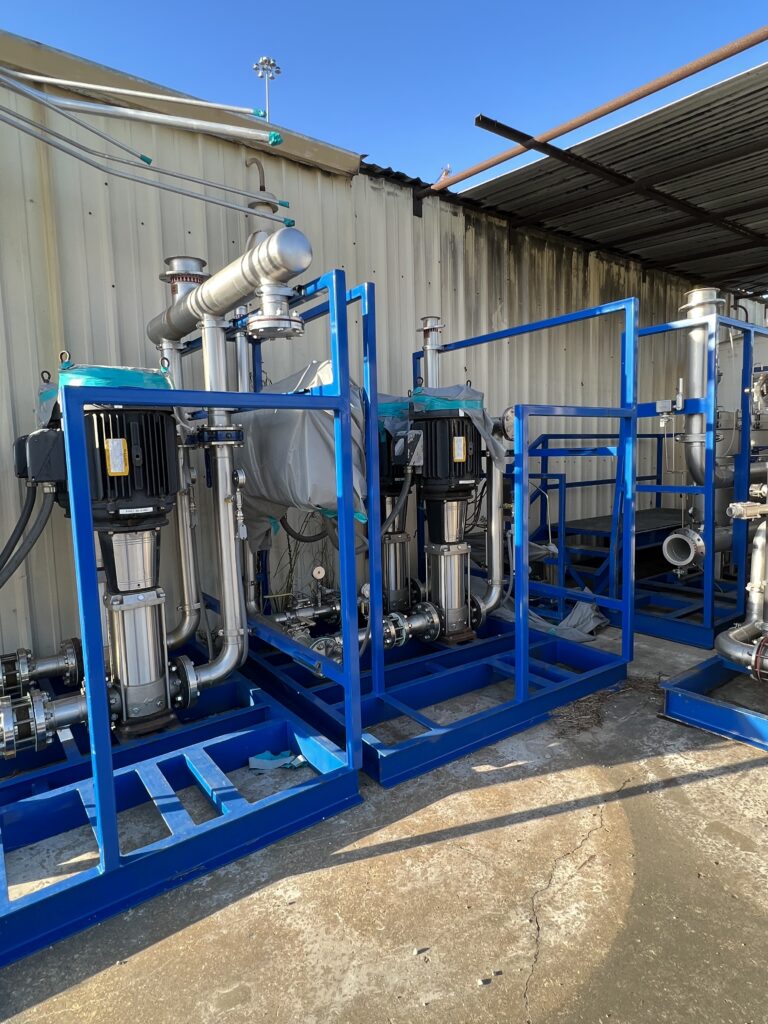

Pass 1 Booster Pump Skid Including

• (2) 336 GPM 100% Capacity High Pressure Booster Pumps and Motors
• All Valves, Piping and Fittings within the Skid Footprint
• (2) Electrical Disconnect/Hand-Off-Auto Stations

Pass 2 Booster Pump Skid Including

• (2) 235 GPM 100% Capacity High Pressure Booster Pumps and Motors
• All Valves, Piping and Fittings within the Skid Footprint
• (2) Electrical Disconnect/Hand-Off-Auto Stations

Scale Inhibitor Feed System Including

• (2) Metering Pumps
• All Valves, Piping and fittings within the Skid Footprint

Scale Inhibitor Tank Skid Including

• Poly Tank
• Mixer
• All Valves, Piping and fittings within the Skid Footprint

Variable Frequency Drives

• (4) Allen Bradley Powerflex 400 VFDs

Note, all piping removed at first flange or valve, and all conduit cut at 1 ft from skid
